Description

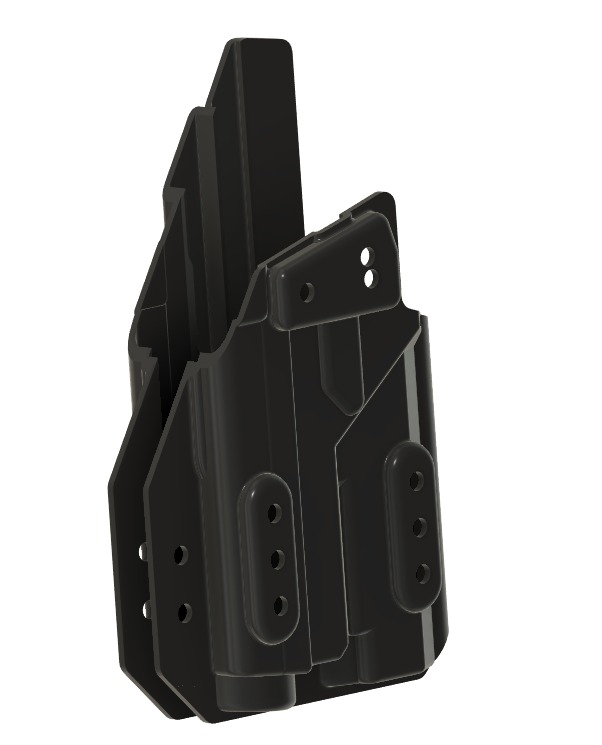

Compression Holster Mold (3D Digital File)
Engineered for press forming—perfect either for beginners starting out without expensive vacuum equipment, or professionals wanting a more defined, sharp, and detailed look than vacuum forming provides.
-
Universal Compatibility: Available for all mold configurations, including standard pistols, light-bearing setups, pancakes, sidecars, chest rigs, and mag carriers.
-
Built-in Trim: Mold halves act as their own trim guide during pressing—no separate TrimJig needed or included.
-
Custom Kydex Thickness: Standard design is modeled for 2mm Kydex, but can be custom-spaced for various thicker materials (such as 3mm or 3.2mm) upon request.
-
Open Files: STL included. Editable STEP/CAD files available upon request.
Required at Checkout: Provide firearm model, light model (if applicable), mold type, hand orientation, and preferred Kydex thickness.
Equipment: Standard Kydex foam press, vise, or heavy-duty clamp setup required (no vacuum setup needed).
DIGITAL 3D FILE ONLY — NO PHYSICAL ITEM DELIVERED

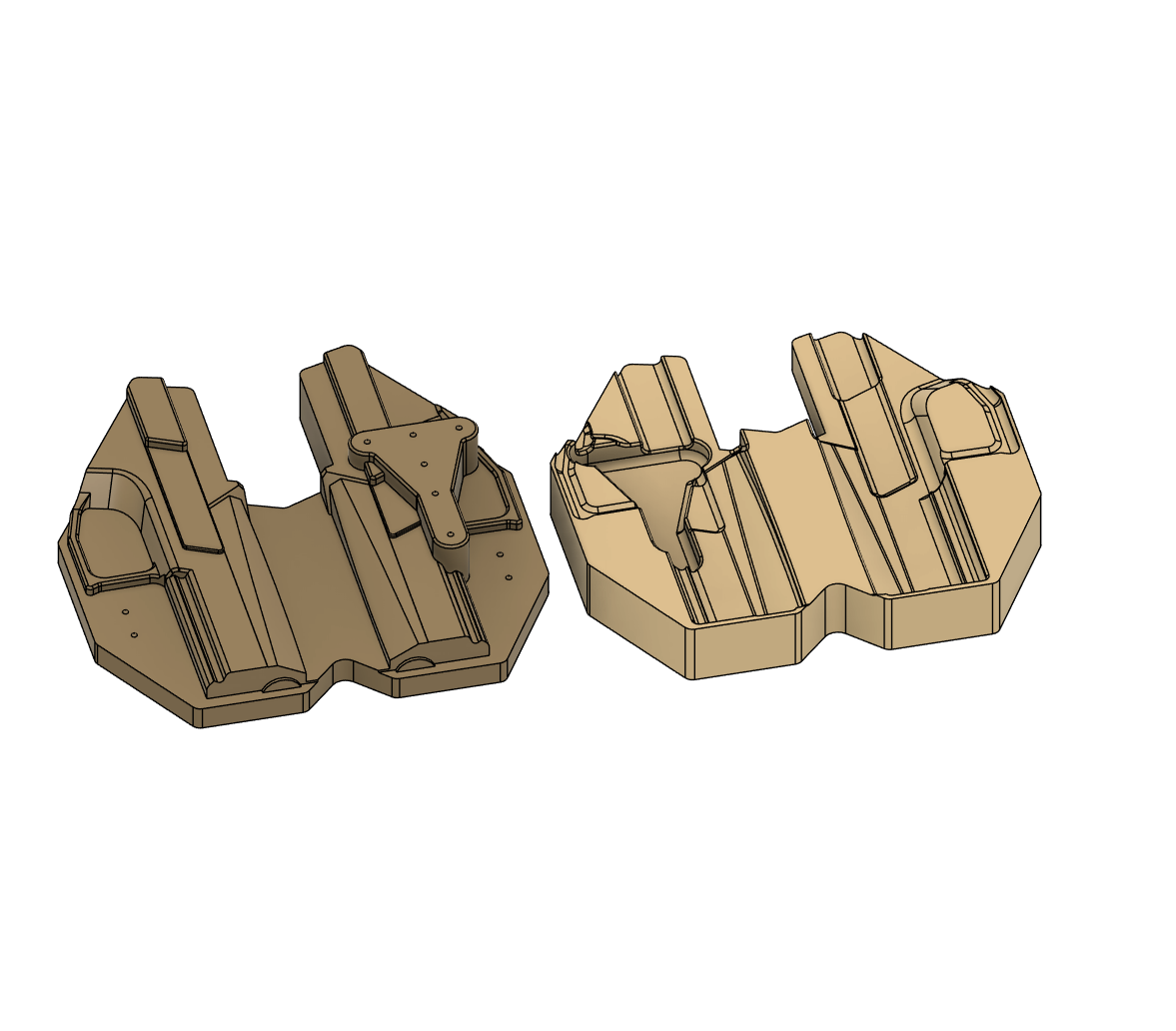

Digital 3D CAD design for Kydex thermoforming, modeled from 1:1 scan data. Ready to 3D print or CNC machine. (No physical mold, metal block, or finished holster will be shipped.)
-
3D Mold File: Built to your checkout selections (STL/STEP).
-
TrimJig: Not included or needed. Compression molds act as their own trim guide.
Print Settings (PETG or ASA — High Compression Strength)
-
Layer Height: 0.2–0.3 mm
-
Walls/Perimeters: 5–6 walls
-
Infill: 50–70% (Gyroid or Grid)
